Thursday, 28 March 2013

Spend a night in the box...

Paul Newman
No man shall have worn mainshaft bearings. Any man found with worn mainshaft bearings spends a night in the box!

No man shall be missing his kickstart stop. Any man found missing his kickstart stop spends a night in the box!

No man shall forget his lubricant. Any man found forgetting his lubricant spends a night in the box!

One of my favourite films, Cool Hand Luke.

Talking of spending a night in the box, the engine is going to be ready next week and I need to have the gearbox out & cleaned because if I know myself at all I'm not going to want to tear Amelia apart anytime soon, when the bottom end is back in.

So, I've been looking at Mr. Waller's book and I need to record what I'm doing with the gearbox. There doesn't appear to be a manual for the BA, so perhaps we can write one.

Many machines used Burman gearboxes, going back to pre-war years including Ariel, AJS & Matchless, Panther & Vincent. Many of these manufacturers used the GB gearbox with the enclosed clutch arm, and there is some material out there on these boxes. This text is predominantly about the earlier BA box fitted to my Square Four, which shares much of it's internals with the GB, and indeed the GB was derived from it.

The gearbox which is the subject of this article is a 1951 BA from a Mk1 Ariel Square Four.

Getting Access - Removing the Gearbox


Remove the clutch cable by loosening the adjuster and disconnecting the cable nipple from the clutch operating arm on the gearbox outer cover. If you have the rubber boot fitted over the arm, draw this back over the arm to expose the nipple.

Just imagine how that would have been handled in a Carry-On film. You can almost hear Sid laugh.


Speedo Cable Screw - don't lose it!
The speedo cable is removed from the end of the gearbox by removing the screw on the outer casing beneath the cable. Put it back in once the cable is removed so you don't lose it.

Loosen the bolts securing the kick start lever and the gear lever. I leave the levers in place since it gives you something to hold when you remove the gearbox.

Remove the clutch cover, slacken and remove the spring screws and remove the plates. You now have access to the clutch centre tab washer which you can knock back, followed by the nut and the clutch centre. Next, drain the primary case and take out all the screws. Split the primary chain and put it in a bag to keep it clean. Now you can knock back the tab washer (in six places) securing the clutch basket screws. Remove the screws. When you lift the clutch basket away, arrange a plastic ping meal container underneath to catch the needle rollers within the centre bearing. Hopefully they won't all fall out. There are 12 of them.

Lastly, remove the rear chainguard and the rear half of the primary case. You can now see, and hopefully you will clean the gearbox.
Complete, vice mounted Burman BA
The gearbox is now ready to be removed from the frame and it is only (!) necessary to take off the oil tank and battery carrier to give greater accessibility to the top and bottom clamping and swivel bolts. Loosen all rear engine plate bolts and the gearbox adjuster and allow the plates sufficient slackness to enable the gearbox to be lifted out towards the offside. Have a rest. I know your pride & joy looks like a basket case again doesn't it!

Clamp the gearbox in a vice by way of the bottom swivel lug and remove the nuts securing the outer end-cover, which can then be pulled away complete with the kickstarter and foot-change mechanism. This is what you will see:


CP Gearboc Kickstart & Selector Mechanism

We'll look at these bits later, or you can skip to the bottom of the text and look at them now, which is what I did!
An exploded gearbox. I hope his book is out of copyright.
The gearbox is of course upside down...

The kickstart pinion ratchet & pinion

Dismantling the Gearbox Internal Mechanism

 This operation can begin by unscrewing the hexagon nut on the end of the mainshaft and taking off the kick-starter driving ratchet, ratchet pinion, distance sleeve and short coil spring.

These parts require checking for wear, together with the kick-starter quadrant which was removed with the outer end-cover. You need to make sure that the teeth on the ratchet nut (item 41) and the driving ratchet (item 42) are nice and sharp, and not worn. You'll see them in a picture somewhere hereabouts, looking nicely unworn.
The mainshaft  nut is a bit mangled though, looks like it has been in a scrap with Mr. Chisel & Mr. Hammer.
The, um, Key to Fig 33. Sorry Mr. Waller.

If the first few teeth of the quadrant are "burred," these should be ground down to give a clean engaging action with the ratchet, but a new part is, of course, advisable. Note that the first 'tooth' is typically ground off, which enables engagement with the pinion in the first few degrees of movement.

Kickstart quadrant. Perfect condition.
Remove the inner half gear-cover from the main casing, taking note of the twelve hardened rollers which form the bearing for the gearbox camshaft. Since 1941 many gearboxes have been fitted with a phosphor-bronze bush in place of the roller-type race (but not mine! 1951 and it still has the roller race for the camshaft). Next remove the slotted screwed plug at the base of the main casing and pull out the pawl spring. Pull out the mainshaft from the clutch side and then remove the layshaft with gears and operating forks as a complete assembly. This is not difficult, but to make it easier you can remove the mainshaft & layshaft third gears before you take the whole cluster out (items 15 and 45 in the exploded view). You can put them back separately too. Saves you dropping them on the floor and spending the rest of the evening in tears.

Inspecting Internals for Wear

The pinions and operating forks should be carefully examined, as should the layshaft and mainshaft. Check for wear on the fork operating faces and renew if at all grooved. Note the order of assembly on the camshaft and that the longer of the two forks is for operating the sliding gear clutch on the layshaft. Remove the split pins retaining the dowel in each fork and remove the dowel. Inspect the dowel for wear, which will appear as flats worn on the sides. Replace the dowel using new split pins, cutting them short & bending the legs outward. Grease the pins and the slots before you reassemble the camshaft.

Forks. Beautiful. Clean. Square. Lucky boy.
Burman gear pinions are not case-hardened, but being made from oil-toughened nickel-chrome steel, are hard enough to give strength and wearing quality without the risk of frequent fracture, which is more relative to gears which have been case-hardened and treated. Gear pinions very seldom call for replacement, unless through some reason a fractured tooth has occurred.

Of course, we are looking at gears that may have been in service for many more years than perhaps Mr. Waller might have imagined, so we might look more closely at our teeth. Always pays to take care of your teeth.

So what are we looking for? ISO 10825 lists a number of failure modes for gear teeth:
  • surface distubances such as wear, corrosion or overheating
  • scuffing, which is the transfer of material from one surface to another, under load
  • permanent deformation - bending, rippling, indentation
  • surface fatigue, such as pitting, spalling or flaking
  • fissures & cracks
  • tooth breakage
George had poor teeth...
Fortunately, examination of the gears revealed no damage and very little wear. Machining marks were evident in some areas.

If the gearbox has been long in service it is advisable to check both the layshaft and mainshaft spindles between lathe centres and using a clock-dial gauge.

If either shaft shows bending to have taken place and this to exceed 0.005 in., a renewal is advised. Test the shafts in their respective bearings or bushes and note that a clearance wear of 0.005 in. - 0.007 in. is permissible before renewal. The driving gear and sprocket, having been left in position in the gearbox shell, should be tested for clearance, both internally and externally, and if the centre bushes show a clearance exceeding 0.006 in. - 0.007 in. when tested with the mainshaft inserted, fit new ones.

Driving-Gear Bushes

Two are fitted with a centre space for grease deposit between the two and are a tight press fit and require reaming after fitting to give a shaft clearance of at least 0.0015 in - 0.002 in.
The contents of my box
To remove the driving gear from the casing the sprocket large locknut must be unscrewed. Some models have a special lock-washer securing the nut, whilst others incorporate the system of punching the inner edge of the nut into one or more of the splines of the driving-gear shank. Knock out, pry out or drill out the elements of the lock washer that are retaining the nut, and proceed with removing the sprocket.

To remove the sprocket, Mr. Waller says:

To hold the gear and sprocket from turning, a very useful tool can be made up and used as follows. Obtain a scrap mainshaft and grind two flats on the thick end which carries the clutch race . Fix this shaft in the vice by gripping the flats. Take the mainshaft sliding gear and place on the splined shaft with the large pinion uppermost. Next invert the gearbox case over the shaft and engage the sliding-gear pinion with the driving gear.

That method is all well & good when there are a plentiful supply of old mainshafts knocking around,  but I don't think today I or anyone else will be destroying precious spares in this cavalier fashion. My alternative starts with removing the mainshaft, and inverting the whole box so that the sprocket nut can be gripped in the jaws of your vice. Then, take a large Stillson wrench/Monkey wrench/pipe wrench, and open it up as wide as you can. Use the Stillson to grip opposing teeth on opposite sides of the sprocket and turn the whole sprocket, which the vice grips the nut. You might need a tube or something to increase leverage - it will be tight. It's a normal RH thread, so when it won't come undone don't think you are tightening it!


Shh don't tell anyone, but this is a Bantam clutch puller!
Undo it using this method until it is free to turn, but don't forget that the box is supported on that nut. As soon as the nut is undone the box will fall on the floor if you don't watch it! Take it out of the vice and finish removing the nut with the box safe on the bench. The driving gear can pushed into the case for removal, when you strip the internals out.

The sprocket can be stiff too. A puller will fix that easily.


Gearbox Sleeve Gear Oil Seal


Seals in situ
During the 1948 season, Burman introduced a self-adjusting oil-seal to be fitted next to the main driving-gear ball bearing. The idea was to convert the gearbox to "all oil" lubrication from the grease or grease/oil mix used previously; although the seal was effective in preventing leakage at the bearing end of the box, there was considerable "weepage" elsewhere.

With a seal fitted it is advisable to use a fifty-fifty mixture of oil and grease as a lubricant and "top up"  with a grease gun filled with such a mixture.

The oil seal can be obtained and incorporated on any Burman four-speed gearbox, Type "BA" and Type "CP ". The seal fits with a thin steel gland washer on either side, immediately behind but after fitting the driving-gear bearing (see Part No. 25, Fig. 33). The seal components are shown in picture nearby.


Check the Main Ball Bearing and Bushes


The driving-gear ball bearing is easily pressed out of the housing after removal of the circlip and dust-cover, and the oil seal if it is fitted.

Wash out the bearing and check inner and outer races for pitting and wear. While you are at it, wash out the mainshaft ball bearing from the kickstart end and inspect that too

If bearing shows any signs of wear and "shake" renewal is advised. A worn bearing will cause gears jumping out as well as undue noise. Mine were both loose & showed a fair bit of play once clean - unwashed, they were just gritty & hard to move.


The layshaft spindle bush and camshaft bush fitted into the gearbox case should be examined. These bushes have a flanged-face fitting and are pressed into position.
BA Gearbox Sleeve Gear Seal Components

All the tolerances, plus the actual dimensions of the bushes and shafts from my box are on the Engine & Gearbox Tolerances page within this blog. You'll notice that my bushes are all on the upper end of acceptable wear, but considering that this machine will doubtless be used for leisure pursuits we will not replace the bushes this time.


If the camshaft bush flange is worn the shaft can take up a floating action due to excessive end-play, and as the operating forks are located on the shaft this float will readily cause the forks to over-travel with the sliding gears and disengage them whilst under load. A temporary repair can be effected by placing a hardened shim or washer on the end of the camshaft to compensate for the worn flange, taking care to leave at least 0.001 in. - 0.002 in. end-play.

The coil springs and their housing
After ensuring that all gear pinions and shafts are in good condition for further service, preparation should be made for reassembling the main gearbox. We will however review & inspect the gearchange & kickstart mechanisms first.

The Gearchange Mechanism

The foot gear-change mechanism is of the positive type and allows only one gear at a time to be engaged by one movement only of the pedal either way. Apart from accidental damage, the only parts requiring replacement due to wear and tear over a long period are the two main coil springs and the two pawl coil springs positioned in the alloy spring-box, and the ratchet and quadrant pawl.
Pawl and his teeth. Actually very good
The ratchet and pawl should be closely examined for any sign of wear at the engaging points and, although a temporary repair can be made by "stoning" up, these parts should be replaced if they appear to be unduly worn.

Check the tightness of the three rivets securing the ratchet and quadrant to the sector. Any slackness of this assembly will cause trouble in gear engagement and, resultant jumping out of mesh will occur. You'll see the three rivets in the adjacent picture - two round rivet heads on the arc with the gear teeth - the third is just visible as a circular mark on the pawl ratchet. This rivet is countersunk this side.

Note that in the same shot you can see the timing mark on the arc with the gear teeth - the small punched 'O'.

Three rivets & a ratchet

The Kick-starter

Hopefully you remembered to inspect the kickstarter quadrant when you took it out - if not, clean it and do it now. When you have it clean, pay close attention to the splines for the kickstart lever. If these look worn (i.e. they are not distinct sharp splines with parallel sides) go and find a new shaft. The shaft can be pressed out of the quadrant if need be.

The quadrant and ratchet having been examined or replaced, attention should be given to the kick-starter lever return spring. Ensure that the spring is strong enough to return the lever and pedal to the vertical position after being depressed. A weak spring can have its tension increased by rewinding a further one or two turns, or you could seek out a new one, or, if you fancy playing with your Rothenberger Superfire 2 you could reharden & temper the old one. No guarantees though, this is tricky work!



Kickstart Quadrant Stop (top left)

When refitting, do not wind the spring up solid, but only sufficient to throw the lever and pedal sharply to the normal vertical position. The inner end of the spring fits into one of the slots on the kick-starter shaft immediately behind the quadrant, and the outer end to a peg provided in the gearbox cover. The correct way for fitting the spring is for it to be located on the shaft with the coils running clockwise from the centre. If fitted the reverse way, the pedal will be thrown to the lowest position instead of to the top of the stroke.

The gearbox is fitted with a stop for the kickstart quadrant, which is akin to a Metalastik bush (a steel ring with a rubber centre) fitted over a peg, which is in turn a press fit in the middle casing. AOMCC wisdom suggests that it's installation restricts the kickstart movement some 20-30 degrees.


Reassembling Gearbox


Assemble the cluster on the bench
This is really a reversal of the dismantling operation, said Mr Haynes. Before you start however, prepare all the parts. Make sure everything, including your bench, is really clean. Clean off all that nasty red hermetite the previous bodger smeared everywhere. Clean the oxide off the cases with a wire brush, make it nice and shiny with a dose of elbow grease and save yourself a trip to the blaster. Make any repairs you need to make to the alloy parts of the case - repair that broken clutch cable lug, replace the missing kick start stop.


New kickstart stop peg
Actually I cheated a bit here. I have never tried aluminium welding  (though there is an excellent site at www.mig-welding.co.uk to help you), so to deal with the broken clutch cable lug I bought a new middle casing - but this one had no kickstart stop. You might remember it from this post. Now, normally these are a press fit in the middle case, but mine was missing and the hole mis-shapen. The best option I had was to recut the hole with a 1/2" tap, and the only one I had was 20TPI. I had intended to make a new stop peg from a 1/2" BSC bolt, but since I couldn't find one I had to make a new one from 1/2" round bar, 1 1/2" long, and threaded 1/2" BSC for 1" of its length. I tapped the hole on the case, and cut a slot for a screwdriver in the threaded end of the stop to wind it in. I will secure it with Loctite when I have assembled the rest of the box.

Kickstart stop peg in place

Then replace any bushes that are too tired and ream them to size, not forgetting the tiny bush for the clutch arm. These like most bushes are a press fit in the clutch arm lug on the outer case. Remove them by pushing them out wit the new bush. with the aid of a small bolt (M5 fits neatly) drawing the old bush into a small socket. Clean out the shavings. Replace any missing Welch plugs from the drive sprocket end of the case. These are really easy to make from sheet steel, formed hot with a ball pein hammer in an old socket of a suitable size and deserve a post of their own, since I am running out of space for pictures here!

Lastly, fit the new ball bearings. This is made a lot easier if you leave the bearings in the freezer while you have your dinner. Make sure the seats for the bearings are spotless - you don't want any grit or swarf preventing the bearing from going into the proper position, otherwise they will not be supported properly and you won't get the oil seals in - there is not much space in the large bearing housing for the bearing, seal and the spacer discs. Heat each case with the trusty hot air gun and drop the cold bearings in, seating them with a suitable drift - don't touch the balls or the inner race with your drift, punch or hammer! A cold bearing in a hot case won't need much force, if any. Put a few drops of a bearing retainer (I use Loctite 603) around the outer race.

Now we can begin assembling the box.

Note the correct order of the driving-gear ball bearing, retaining rings, felt washer, etc. and assemble those parts. Grease the bearing as it goes in, and the oil seal if you have one and fit the spacer into it. Insert driving gear in the new bearing, fit the sprocket, the lock washer and do up the nut. You can tighten it but don't bend the lockwasher yet, until we are sure it doesn't need to come off again. I like to leave the nut loose until the box is fully assembled & tested, since it is a pain to tighten. You don't want to do it twice.

Knackered clutch arm bush
Make up the mainshaft gears, layshaft assembly, camshaft and operating forks into a complete sub-assembly, and insert this into the gearbox case, locating the layshaft and camshaft spindles in their respective bushings. It is easier if the camshaft pawl is off whilst replacing the cluster. Insert the mainshaft from the driving-side and pass it through the mainshaft sliding gear. Wiggle it a bit to get it through the splines.
Wiggle the cluster into the case


Fit  the remaining third mainshaft gear on to the shaft end. Check the proper position of the camshaft pawl and refit it, followed by the pawl spring and plug. Leave the plug a bit loose until you have the end cover on - it makes it easier to test for each gear when you are rotating the camshaft by hand.

Fill the roller groove at the end of the camshaft with grease, and place the twelve camshaft hardened rollers (where fitted) in the groove, sticking them in the grease, and fit the gearbox inner cover.

Use Wellseal on the cover - there is no gasket. Nip up the 1/4" BSW nuts securely.

Refit kick-starter ratchet assembly and tighten mainshaft and nut. Turn the mainshaft to make certain it is free - I have nipped the kickstart pawl spring behind it's sleeve, which isn't obvious and puts a side load on both rolling bearings. Test mainshaft for end-play which should be l/64 in. - 1/32 in. If end-play is excessive, this can be reduced by fitting a slightly longer ratchet pinion steel bush on which the kick-starter pinion and small coil spring fit. Another method for reducing end-play is to countersink the inner face of the shaft nut to allow it to project over the shoulder on the shaft end and so push the ratchet further along the shaft.

Timing Must be Checked

Add the 3rd gear pinions
Before you go any further, make sure you can select all the gears. Turn the camshaft using the quadrant - it can be a little stiff, but turn the mainshaft to help it along. You don't want to finish assembling the box only to find something amiss. Tighten the pawl spring plug when you are done. Dave Pitt from the AOMCC says:

"Going anticlockwise the 0 on the cam gear is at about 2 o'clock in 4th, 11 o'clock in 3rd, 8 o'clock in 2nd, between 5 & 6 in detented neutral, and about 4 o'clock in 1st. You can find an undetented neutral between 2nd and 3rd, and 3rd and 4th. The 0's align in undetented neutral between 2nd and 3rd."

Note that when finally fitting the foot-change assembly the quadrant and small gear pinion on the camshaft must be correctly "timed" or meshed, otherwise incorrect positioning of gears will result. The quadrant and pinion are marked with distinctive timing dots (the stamped 'O's) and these must be intermeshed when the gears are in the neutral position before finally bolting up the outer gearbox end cover. As Dave Pitt says, note that the 'neutral' referred to here is a false neutral, not detented by the pawl, between 2nd & 3rd, and is not the true neutral. The true neutral is a detented position on the camshaft between 1st & 2nd.


CP Gearbox with stamped 'O's' aligned

Gear Indicator
Refit the end cover - use Wellseal again on the joint, there is no gasket. Whilst the gearbox is still in the vice, make sure you can get all the gears! Make sure the kickstart returns the lever smartly to the top of the stroke!

You can now tighten the sprocket nut - fit an old clutch centre, with a bar through the  studs and you will be able to tighten the sprocket nut sufficiently. When you have finished heaving this about, you can refit the two gear indicator pointers and the clutch lever and it's adjusters.

A gearbox in a frame
Install the complete gearbox back in the frame. Fit the gear lever, kick start lever, and the clutch cable. Then check the engine plate nuts once more and fill the gearbox with grease/oil mix, enjoying the unprecedented access to the filler cap. The end cover as well as, of course, the main gearbox case should be nearly filled with any of the makers' recommended brands of grease mixed 50/50 with oil, or a self-levelling grease. Quantity required is about 600 ml. Do it up and re-fit the oil tank if you removed it. Fit the speedo cable.

Now you get to go around the other side and put the clutch back together!

Saturday, 16 March 2013

'Puzzled' of Norwich writes on the subject of Brake Rods...

Out here in the hinterlands of East Anglia, the winter has been hard & long & devoid of much motorcycling weather, so we have had to content ourselves with small jobs we can do inside, or snatch brief interludes of inner (shed) calm amidst the fun & excitement of family life.

Brian Challinor mailed with a question about the straightness of my brake rod, which had to wait for such an interlude. My brake rod is as straight as the day it was drawn through the die, since it is brand new and has never been fitted.

However, since that interlude came today, I have had it fitted to the bike. Here are several shots showing it in place:




As you see, it doesn't fit - due to the aforementioned 'straightness'

Here's a shot from a 1989 copy of 'The Classic Motorcycle' of a supposedly 1952 Square Four - I say 'supposedly' because there are a few elements that are more 1950 than 1952. Here's the brake rod:


Careful study will show you that it is bent as the proverbial 9 bob note.

Here's another one, a 1951 bike sold at Andy Tiernan's a few years ago:


Again, bent. The case rests m'lud.

So, another day. another interlude... I have taken that most useful of tools, the wire coat hanger, and bent it to form a dummy brake rod, for the purpose of determining the routing the real thing should take and the bends that would be necessary to accommodate that routing. Having satisfied myself, I bent the real thing. Here it is:

Side view, see how long it is, and the poor (low) position of the brake lever?

Here is a top view, which gives an idea of the two bends:


And here is a view of the brake rod and it's proximity to the brake plate and Anstey stirrup:


Looks like the brake arm might be the wrong way around, and the rod needs to be shorter. I'll leave that until I have relined the shoes and positioned the pedal properly - once it's cut shorter, it can't be lengthened again!

Here's a view from Brenton Roy's original '51 Square, suggesting that my installation is along the right lines:

Proving yet again that the AOMCC forum is a wonderful resource for us! I'm thinking that my brake arm is a little more bent than Brenton's:

Wednesday, 13 March 2013

Yet another Iron Curtain relic...

My dear son Thomas has a habit of bringing home examples of the finest Eastern Bloc motorcycle engineering available for under a tenner, mostly from eBay.

This was the first one:

It's a Minsk 125 marketed in the '70's under the Neval banner, and is one of those  myriads of  DKW RT125 copies of which my Bantam is a fine example.

He painted it, serviced it and we spent months fiddling around with a peculiar electrical system with no battery that was never going to drive those indicators without flashing all the other lights at the same time. It went OK though.

He sold it for a profit, financing the purchase of whatever students drink these days.

It was followed by an MZ TS125, courtesy of eBay, it was the Luxus model (the one with the real hair?) with the rev counter. This was a bit more adventurous  as when it arrived it had no wheels, tank or seat. He collected from somewhere in Hertfordshire, on the way to my Dad's funeral. He turned up behind the hearse with this MZ stuffed into the back of our Morris 1000, which was never the same again. And no, it wasn't an estate, or a van, or a pick up - just a regular two-door saloon.

Here it is:


He did a great job with it, collecting all the missing parts, repainting & rebuilding. This is how it ended up:

Strangely enough, it looks just like any other TS125 doesn't it! It ran pretty well once we got it going, which in itself was an adventure because some numbnuts had fitted a home made base gasket without cutting the transfer ports in the gasket. Puzzling - the carburettor had fuel in it, the jets were all clear, but the plug was dry...

He now has this one as well, which like all true enthusiasts he has in his dining room - along with cats & rabbits. His girlfriend, bless her, is just as enthusiastic! It quite brings a tear to my eye, reminds me of the 250 Matchless that used to occupy our living room:

So this is the latest addition, another eBay find. We bought this one together - I paid, he went & collected it - as a kind of joint project & a 'congratulations' for getting a promotion at work:


This is how the advert was worded:

1981 MZ TS250/1 Supa 5 restoration project or for spares.
Both tyres are useless and have punctures, the silencer has the usual case of MZ Rust Scabies, both tank panels have quite good chrome for an MZ but aren't perfect. The grey colour is primer and the general gunky condition is old Waxoyl put on years ago to try and help preserve it.
Engine kicks over freely and seems to have quite good compression, all gears seem to select - but it's not a runner and there's no Tax or MoT so please don't think you can ride it away. (It's happened!).
It has the correct front indicator lenses, sound speedo and tacho brackets and the rare-ish side stand plus a Rear lens and tool-box cover (no lock) come with it.
Originally bought by me (in this state) as a source of spares for my other Supa 5 back in 1994......and there it's sat ever since; and as my ride to work Supa 5 has long since gone this may as well follow it.
Interesting number plate? TEX 6**W
All in all a nice little project that just needs a little T.L.C........you could have it running by the weekend (lol)!
Just to re-iterate this is a non-running project, with no Tax or MoT so you will need a van or trailer to take it away (I'm unable to deliver). We are near Bury St. Edmunds in Suffolk.
Having said that, there is a possibility I could take to Beverley (near Hull) for collection from there on 23rd February - but it is only a possibility, so PLEASE contact me first before assuming it's going to happen!
Any queries, please email before bidding.


And here is another view:


Now that is it at home in my garage (another thing he has learnt - why put stuff in your own house when you could leave it at your Dad's?), I have to say it is a fine machine. The waxoyl the previous owner (I don't know his name) smeared all over it has made a great job of preserving the alloy and some of the chrome. It has apparently been standing in a garage for the past 20 years.

The rubber is shot to bits though. I was tempted to put some tyre sealant in the tyres just to move it around more easily, but on screwing the can onto the valve I found the valve completely detached from the tube!

So there it is. Waiting a bit of time, for #1 son to buy a battery and for me to take a trip to Leeds, where I understand Wyldes have some tyres at a good price...

Wednesday, 6 March 2013

A Good Thing

Aside from motorcycles (and we have yet another MZ in the family) we have a fabulous event to announce, helping to fill the hole left by the dear departed Ruby, our Cocker Spaniel.

This is Max. He is a 6 month old chocolate Sprocker (Springer Spaniel x Cocker Spaniel):

Isn't he great!

Hack & Slash

Spurred on by idleness, I have done a drastic thing to my original mudguard at the rear - I have sliced it almost in twain with a hacksaw.

The issue is that to get the L-stays into their studs at the top of the spring housings, I had to put a lot of pressure on the mudguard.

The reason is that I have, whilst reinforcing the mudguard, inadvertently straightened it out too much.

First I made one saw cut in each side, than I flexed the guard so that the L stays fitted into their lugs.

I found that my saw cuts had closed up completely. I then made a second cut, which partially closed up. Now I had no tension in the guard and I had a gap in which to re-weld.

Now all I have to do is weld it up again.

Brake Light Switch

The devil is in the detail, they say. Casting around for small jobs, I realised that I had nowhere to mount the brake light switch. I knew from studying the wiring diagrams that Ariel began fitting brake lights to Square Fours around 1953, so that early Mk 2s would have factory fitted switches.

A plea on the AOMCC forum yielded this picture, from Greg Snyder in Pennsylvania, USA:


Greg also posted this, of the bracket in situ on his bike:

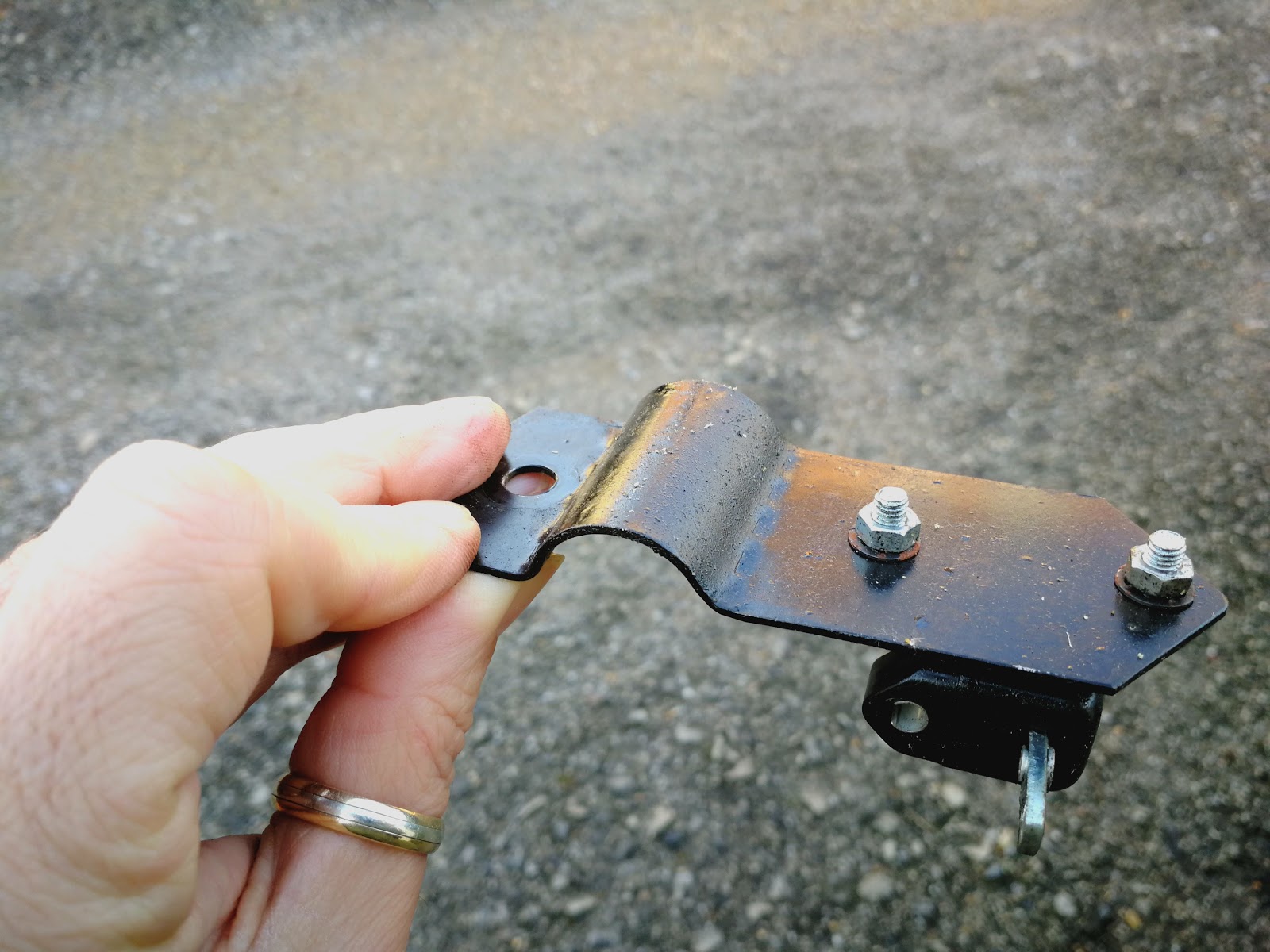

So, with guidance like that it was easy to make a new one:

Gearbox - a stroke of luck

You may or may not have noiced, but Amelia's non-original gearbox end cover has a broken clutch cable abutment bracket:

You can just about see it here if you know what you are looking for. This is a picture of the gearbox as it came out of Grace's van.

I had planned to get Matchless Engineering to weld this up and then cut a new slot & hole, which I probably should have done, but then this came up on eBay:

An hour with some white spirit and a small brush cleaned it up nicely:

I will try and repair the old one and then sell it, when I have a minute!
